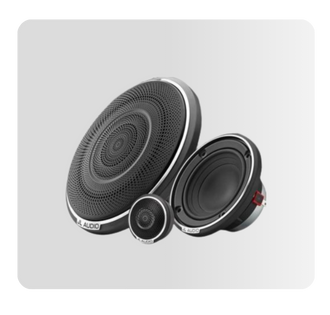

JL AUDIO C7 Speakers.
The C7 is the highest-end series of JL Audio speakers currently available. It was developed with great care at JL Audio’s R&D center in the United States, where product assembly pays close attention to detail and precision.
The C7 is a 3-way speaker system. The midwoofer and midrange (C7-650cw) feature cones and dust caps made from mineral-filled polypropylene. Their rounded profile design optimizes sound response. The basket body is constructed using a die-cast alloy process with a slim profile design, maximizing air ventilation for the voice coil.
The C7 tweeter is designed to deliver maximum performance at high frequencies. Its diaphragm combines aluminum coated with corundum ceramic, while its dome is made of silk, resulting in detailed high-frequency sound reproduction.
Midwoofer specs:
– Continuous Power Handling (RMS): 125 W
– Recommended Amplifier Power (RMS): 50 – 175 W per channel
– Nominal Impedance: 4 Ω
– Frequency Response: 50 Hz – 5 kHz ± 3 dB.
Midrange spec:
– Continuous Power Handling (RMS): 100 W
– Recommended Amplifier Power (RMS): 50 – 150 W per channel
– Nominal Impedance: 4 Ω
– Frequency Response: 300 Hz – 10 KHz ± 3 dB
Tweeter spec:
Continuous Power Handling (RMS): 100 W
Recommended Amplifier Power (RMS): 50 – 150 W / Ch.
Nominal Impedance: 4 Ω
Frequency Response: 3 kHz – 30 KHz ± 3 dB
